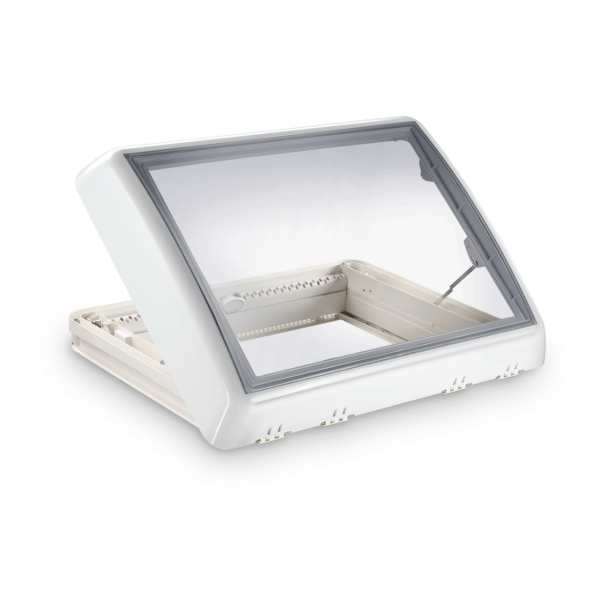

Dometic Midi Heki LED Roof light - Crank Version

Be the first to review this product
Regular Price $780.00 Special Price $699.00

Dometic Midi Heki

Roof light
Availability: In stock
SKU
DOM14931702
Add to Wish List Add to Compare

❖Features

Dometic Midi Heki

Roof light

Open up your vehicle to fresh air and light! This well-insulated roof light boasts convenient features including a fly screen and hassle-free cleaning.

Features

  • Opens to three positions: fully open, half-open, and bad weather position
  • Dome with double acrylic glazing
  • Separately adjustable darkening and fly screens
  • Crank-operated
  • Hassle-free cleaning

* Please add notes to confirm which thickness of the bracket do you need, normally we send the ZUB1379.

ZUB1376: 25-29mm
ZUB1377: 30-34mm
ZUB1378: 35-42mm
ZUB1379: 43-52mm
ZUB1380: 52-60mm

❖Specifications
Brand Dometic
General
SKU number 9104120383
Model Midi Heki GD Crank Version
Model on label Midi Heki GD Art.1493 crank model
Scope of delivery Midi Heki GD Art.1493 crank model
Product Description Roof light
Dimensions
Dimensions product depth, [mm] 617
Dimensions product height, [mm] 617
Dimensions product width, [mm] 846
Dimensions ordered width, [mm] 700
Dimensions ordered height, [mm] 500
Net weight, [kg] 8,5
Dimensions opening width, [mm] 585
Dimensions opening height, [mm] 404
Possible material thickness 1 min, [mm] 25
Possible material thickness 1 max, [mm] 60
Ventilation opening, [cm<sup>2</sup>] 150
Cut out height, [mm] 500
Cut out width, [mm] 700
Additional
Opening angle max, [°] 60
Positions fixed
 Variable
Certificates
 ECE R43
Logistics
Dimensions parcel depth, [mm] 680
Dimensions parcel height, [mm] 230
Dimensions parcel width, [mm] 920
Parcel weight, [kg] 9.50



More Information
MPN 9104120383
Brand Not Available
