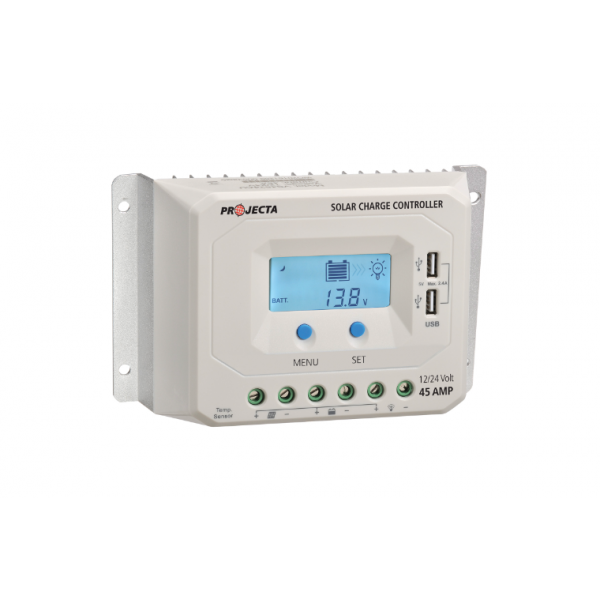

Projecta SC245 Automatic 12/24V 45A 4 Stage Solar Charge Smart Controller

❖Features

Ideal for larger deep cycle battery banks often found in motor homes, houseboats and remote shacks. This sophisticated controller boasts a host of intelligent features enabling the user to customise the charge settings to maximise battery life and performance.

>   Built-in temperature sensor

>   Easy power in/power out connection

>   User friendly menu/set buttons

>   Efficient heatsink rear panel

>   Digital LCD screen

>   Dual USB Ports (Max 2.4A)

>   Multi-chemistry battery selection

>   Low voltage disconnect

❖Specifications

Brand

Projecta

Part Number

SC245

Charge Type

4 Stage

Input

12V or 24V

Max Input

50VDC, 45A

Battery

12V or 24V

Max Panel Size

540W (12V)

Size

196mm x 118mm x 64mm

IP Rating

IP22

Approvals

EMC

Bulk: 14.2V/28.4V(GEL),

Absorption: 14.4V/28.8V(AGM), 14.6V/29.2V(Wet)

Equalisation: 14.6V/29.2V(AGM), 14.6V/29.2V(Wet)

Float: 13.8V/27.6V

Weight

0.9kg

Shipping Dimensions(mm)

220 x 130 x 80

Manufacturers Warranty

2 years
