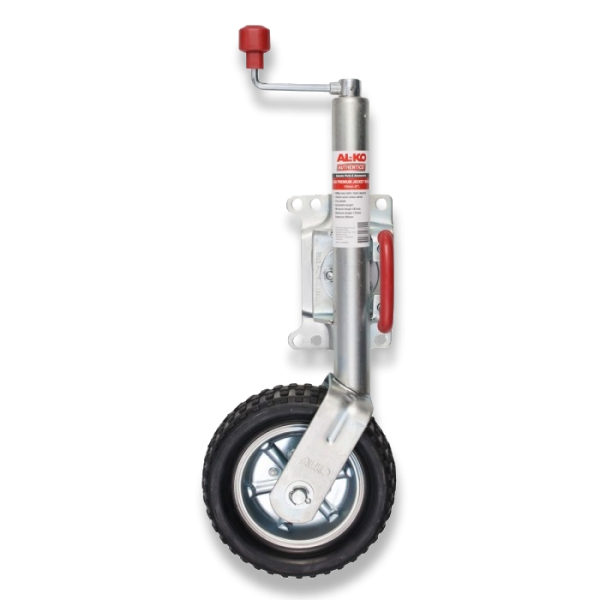

ALKO Premium 10" 250mm Heavy Duty Large Swivel Bracket Jockey Wheel 623660XP3 / 450-00642

Regular Price $165.00 Special Price $154.50

For ease of use is the benefit when selecting an AL-KO Swivel Bracket Jockey Wheel. No need to remove it from the trailer – just pull the release handle and the jockey wheel rotates into a suitable travelling position. This unique design is covered by Registered Design in Australia and New Zealand. The swivel bracket can be either welded or bolted to the drawbar. A selection of mounting holes allows the use of u-bolts to attach the jockey wheel to the trailer drawbar.

Our tip: For soft terrain, select a wider wheel.

Availability: In stock
SKU
623660XP3

❖Features

>   Load capacity up to 400 kg

>   Swing up storage

>   Runs over uneven ground

>   Easy to manoeuvre

>   Smooth, reliable crank

>   Removable wheel (for additional security and to replace worn wheels)

AL-KO Premium product line jockey wheels*: Corrosion protection: Zinc Plated, Thrust bearing, removable crank and wheel, standard & wide clamp options.

❖Specifications

Brand ALKO
Model 623660XP3
Wheel Size (D) 200mm dia
Mounting Swivel
Static Capacity 400kg
Tube O.D. 48mm
Closed H1 630mm
Open H2 880mm
Closed G1 320mm
Open G2 570mm
U1, U2, U3 63, 113, 88mm
W 185mm
Weight 11kg
Shipping Dimensions(mm) 720 x 150 x 270
Warranty 1 year
