Enerdrive ePOWER  40A Low Battery Cutout

Enerdrive ePOWER 40A Low Battery Cutout

Enerdrive ePOWER 2600W 12V True Sine Wave Inverter with AC Transfer & Safety Switch

Regular Price $2,117.00 Special Price $1,669.00

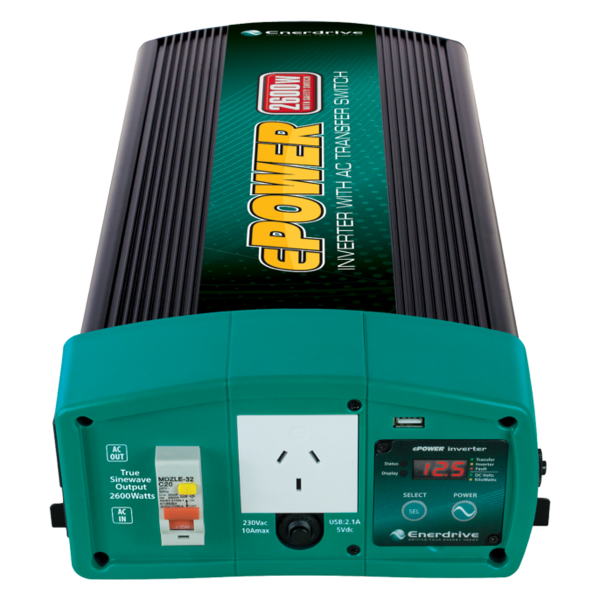

ePOWER 2600W True Sine Wave Inverter with AC Transfer Switch & Safety Switch

The ePOWER 2600W Inverter with AC Transfer & Safety Switch is one in a family of affordable, high quality, professional level inverters by Enerdrive. By using the latest power conversion technology, ePOWER inverters deliver clean and energy efficient true sine wave AC power from your DC supply.

This ePOWER Inverter incorporates a 16A AC Transfer Switch which allows for seamless AC power transfer between Mains/Generator and Inverter. This helps to keep your appliances running with almost no break time on AC transfer and allows for a much simpler installation on-board.

Also included in the unit is a RCD Safety Switch. This switch monitors the flow of electricity through the inverter and detects any problems that may pose a risk to personal safety and switches the output power off within 0.03 of a second.

The ePOWER 2600W is built to operate basic equipment such as power tools, computers, microwave ovens, televisions and other appliances that use up to 2600W of power for operation. All Enerdrive ePOWER Inverters are covered by our extensive 5 Year warranty.

Availability: In stock
SKU
EN1226S-X

❖Features

> Seamless 16A AC Internal Transfer Switch

> AC RCD/Safety Switch with test button

> Removable LED Remote Control Display Panel

> Regulated Pure Sine Wave Output

> Silent Operation

> Compact Size for Easy Installation

> USB Port for charging USB devices

* includes 6m Screen Data Cable, 4m Power Cable

❖Specifications

Brand Enerdrive
Model EN1226S-X
AC Output Power 2600W
AC Output Current 11.3A
AC Output Voltage 230 Vac / 50 Hz
AC Output Waveform Sinewave (<3% THD)
Nominal DC Input Voltage 12.5 VDC
No Load battery draw
DC Input Voltage operating range 10.5 – 15.5 VDC
Under Voltage Alarm 11.0 / 12.1 VDC
Under Voltage Alarm Recovery 11.3 / 12.3 VDC
Under Voltage Shutdown 10.5 / 11.8 VDC
Under Voltage Shutdown Recovery 12.0 / 12.6 VDC
Over Voltage Shutdown 15.5 VDC
USB Port 5V, 750 mA
AC Transfer Switch
Transfer Time < 30 ms
Transfer Relay Rating 16A (resistive load)
AC Input socket IEC-C20 16A max
AC Output socket IEC-C19 16A max
AC Output Front GPO 10A max
Safety and Environmental
Conformance All required Australian Standards , CE LVD: EN/IEC 62040-1, IEC61558-2-16
EMI / EMC CE EMC: EN/IEC 62040-2 category C1
Agency Markings RCM , CE
Operating Temperature 0°C to 40°C
Storage Temperature -20°C to 60°C
Relative Humidity 5-90% non-condensing
Operating Altitude Up to 3000 meters above sea level
Weights and Dimensions
Weight 7.0 kg
Dimensions (W x L x H) 560x230x115 mm
Warranty 5 Years
More Information
gtin 9342616000335
MPN EN1226S-X
Brand Enerdrive
