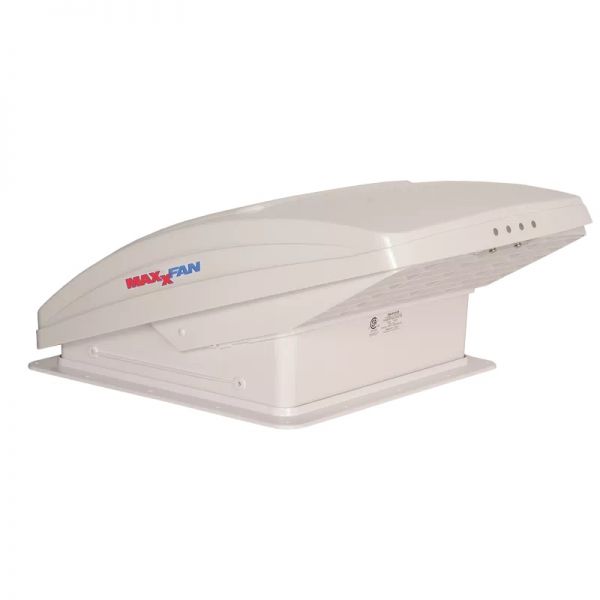

MaxxAir Maxxfan Deluxe with Rain Dome, Thermostat, Power Lift & Remote

❖Features

RV ventilation has never been easier than with a MaxxFan. They’ve been used in the US RV market since 1988, and they are now exclusively available from Coast to Coast. The MaxxFan Plus and the MaxxFan Deluxe, both have a manual option and an electric opening option, and they also have a ceiling mounted control panel that is easy to use and read.

Product Description

Removable flyscreen – simply twist the L-clamps and remove for cleaning!
Installs onto all standard 14” x 14” (356mm x 356mm) roof openings
Powerful 10-speed fan motor
Fan can run even if the lid is closed (select ‘Ceiling Fan Mode’) and can be used in “intake” and “exhaust” modes
Provides over 900CFM, keeping your RV cool and comfortable
Twin lifting arms limit vibrations cause by wind when in the ‘open’ position

Specifications

Amp Draw on High: 2.5A
Amp Draw on Low: 0.16A
Dimensions (closed): 589L x 421W x 128H (mm)
Dimensions (open): 589L x 421W x 230H (mm)
Installed Weight: 5.4kg
Roof Thickness: 25mm (min) – 90mm (max)

❖Specifications
Brand	MAXXAIR
Model	MAXXFAN Deluxe
Amp Draw on High	2.5A
Amp Draw on Low	0.16A
Weight	5.4kg
Dimension (closed)	589(l) x 421(w) x 128(h) mm
Dimension (open)	589(l) x 421(w) x 230(h) mm
Permanent Airflow	82cm Squared
Roof Thickness	22mm (min) - 90mm (max)
Warranty	2 year

More Information

More Information
gtin	752055006338
MPN	00-07000KIA
Brand	MaxxAir
