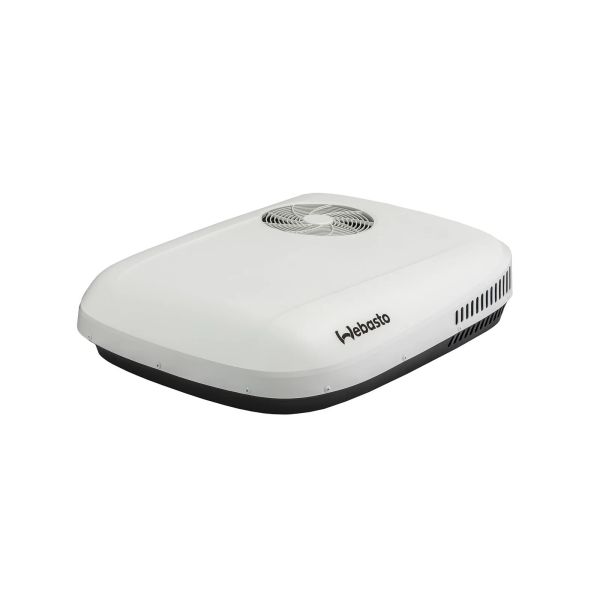

Pickup Only - Webasto Cool Top Trail 28 - Rooftop Air-Conditioning Systems

Pickup Only - Webasto Cool Top Trail 28 - Rooftop Air-Conditioning Systems

Pickup Only - Webasto Cool Top Trail 34 - Rooftop Air-Conditioning Systems

Regular Price $2,389.00 Special Price $2,089.00

Advantages at a glance:

  • Powerful units with high cooling and heating capacity
  • Robust, lightweight and low noise
  • Wide operating range from -5 to 50 °C
  • Low profile and compact design
  • Easy installation
  • With Variable Speed Compressor Technology
  • CI Bus Interface availbale
Availability: In stock
SKU
051506-1

❖Features



Cool Top Trail

For pleasant temperatures in camping vehicles

The Cool Top Trail rooftop air-conditioning systems from Webasto are ideal for parked motorhomes, caravans and campervans up to 10 m in length. Depending on vehicle size and destination, there are several different models to choose from with cooling capacities between 2.0 and 3.6 kW. Their generously dimensioned heat exchangers enable high efficiency and strong performance. Tested in Australian summers with temperatures of up to 50 °C, the models impress with reliable cooling. The systems have a heat pump function as standard which also works in cold outside temperatures of down to -5 °C and provides heat in the vehicle interior.

Benefits of Cool Top Trail

Control your heater effortlessly with the Rotary Selector Switch. Adjust the heat to your liking and stay informed about the heater's status with the indicator and blink code display.

Cooling and heating

The high-performance systems cover an operating temperature range of -5 to 50 °C and always reliably ensure pleasant temperatures and low humidity.

Easy to install

The systems can often be installed in an existing skylight cut-out of 400 x 400 mm or 360 x 360 mm. Frames, screws and operating instructions are included in the scope of delivery. A CI bus interface is available.

Quiet

The appliances are very quiet in operation. A sleep function ensures that neither the night's rest nor the neighbors are disturbed.

Energy-saving

The V-versions of the rooftop air-conditioning systems in particular consume very little power. Thanks to a variable-speed compressor, the air-conditioning systems do not generate any peak currents during the start-up phase. During operation, the power consumption automatically adjusts to the required heating or cooling capacity. Eco functions can be used to further reduce power consumption.

Robust and flat

The housing is made of UV-stabilized polypropylene and is robust, yet light and flat.

Simple operation

All functions can be conveniently controlled by remote control from the dining area, seat or bed.

Product details

Product specifications

Cooling capacities from 2 to 3.6 kW

Heating capacities from 2 to 3.5 kW

Nominal voltage / frequency: 230 V / 50 Hz

Total weight from 30.3 to 48.5 kg

Dimensions:

Cool Top Trail 24:
Dimensions of the outdoor unit (mm): 1,002 x 566 x 215
Dimensions of the indoor unit (mm): 557 x 536 x 43

Cool Top Trail 28:
Dimensions of the outdoor unit (mm): 855 x 657 x 215
Dimensions of the indoor unit (mm): 575 x 556 x 49

Cool Top Trail 34:
Dimensions of the outdoor unit (mm): 1,122 x 850 x 223
Dimensions of the indoor unit (mm): 575 x 556 x 49

❖Specifications

Brand Webasto
Model Cool Top Trail 34
Cooling capacity (W) 3,400
Heating capacity (W) 3,400
Nominal voltage / frequency (V) / (Hz) 230~ / 50
Rated current (cooling mode) (A) 5,8
Rated current (heating mode) (A) 5,4
Operating temperature range (°C) -5°C ~ 50°C
Roof thickness (mm) 25°C ~ 70°C
Roof cut-out (mm) 360 x 360 (400 x 400 with optional adaptor frame)
Dimensions outdoor unit (mm) 1122 x 850 x 223
Dimensions indoor unit (mm) 575 x 556 x 49
Weight total (kg) 48
Manufacturer Warranty 3 Years
More Information
MPN 051506
Brand Webasto
