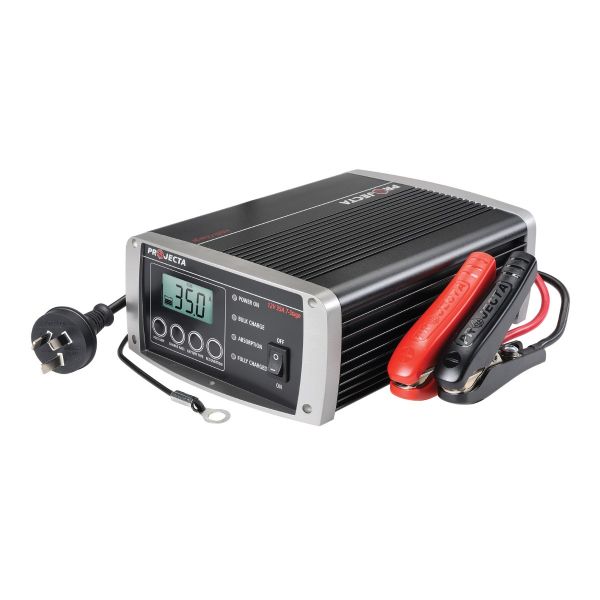

Projecta IC3500 12V Automatic 35 Amp 7 Stage Battery Charger

❖Features

> 7 STAGE CHARGING

Intelligent electronics monitor the charging process to deliver an advanced 7 stage charge maximising battery performance and life

> ADJUSTABLE CHARGE RATE

Set the charge rate to suit different size batteries for optimum charging

> POWER SUPPLY MODE

Operates as a power supply to run a 12V appliance. Ideal for retaining memory when changing a vehicle battery

> SHOCK & DUST PROOF

Constructed from extruded aluminium. The circuit boards have been conformal coated to protect against moisture and other elements.

> SAFER CHARGING

Spark free and polarity protected

> MOUNTING FLANGE

REMOTE CONTROL DISPLAY

> LCD SCREEN

> VOLTS/AMPS

Displays the battery voltage or output current

> CHARGE RATE

Set the adjustable charge rate (current) to suit the battery size

> FLUSH OR SURFACE MOUNTING OPTIONS

> BATTERY TYPE

Charge and select battery and chemistry type

> MANUAL RECONDITION

❖Specifications
Brand	Projecta
Part Number	IC3500
TYPE	7 Stage Automatic
INPUT	240VAC, 50Hz, 570W
OUTPUT	12V
OUTPUT CURRENT	2, 8, 16, 35A
MINIMUM START VOLTAGE	2.5V
BACK DRAIN	Charger 1mA, with remote 2mA
APPROVALS	Electrical Safety, EMC
CHARGE VOLTAGE	14.1V(GEL), 14.4V(AGM), 14.7V(WET), 16.0V(CALCIUM)
L.E.D CHARGE INDICATION
SCREEN	Back lit LCD screen
RED LIGHT ON	Power on
BLUE LIGHT ON	Charging
GREEN LIGHT ON	Fully charged and maintaining, no need to turn the charger off
BATTERY CHARGE TIMES
AUTOMOTIVE	12V, 80-4200CCA, 7-24hrs
MARINE	12V, 110-5800CCA, 7-24hrs
DEEP CYCLE	12V, 14-700Ah, 7-24hrs
Warranty	2 Year
