TEMPERING VALVE ASSEMBLIES STANDARD

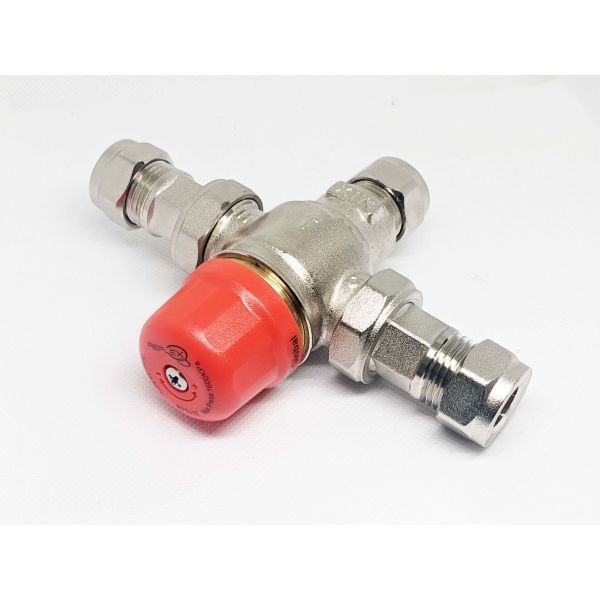

The mini tempering valve blends hot and cold water to prevent hot water scalds.
Suitable for standard water heaters.
Comes complete with compression nuts and olives.
SPECIFICATION:-
- Adjustable outlet temperature
- Tamper proof adjustment
- DR brass body
- Integral non-return valves
- 15mm / 1/2" BSP in size
- Complies with AS4032.2
- WaterMark Certified
- Red Cap for standard water heaters
TVA SPECIFICATIONS & FEATURES
| Model |
DN Size |
A |
B |
C |
D |
| TVA15C-I |
15mm |
144 |
58 |
113 |
67 |
The REFLEX PLV is ideal for installation with high-pressure storage water heaters. When fitted to the inlet supply line to a water heater, its purpose is to control the inlet supply line pressure to a pre-set maximum, and to remain in the open position if the pressure in the supply line falls below the pre-set maximum. Other applications include dishwashers, washing machines, tap mixers and water filtering systems.
INSTALLATION REQUIREMENTS
Pressure limiting valves (PLV) must be installed in accordance with AS/NZS 3500 National Plumbing and Drainage Code and all Government requirements must be met.
REFLEX valves should always be installed by a licensed plumber in accordance with National Plumbing and Drainage Code AS/NZS 3500 and comply with any Local Authority requirements.
